Have you ever looked up at tall structures near commercial buildings and wondered what they do? These structures are often cooling towers, a crucial part of many HVAC systems. A cooling tower is a specialized heat exchanger that removes heat from water used in commercial air conditioning and industrial processes.
Without cooling towers, large buildings would struggle to maintain comfortable temperatures during warm weather, as they provide an efficient way to reject heat from the building to the outside environment.
Key Takeaways
- Cooling towers are heat exchangers that cool water by using evaporation, allowing HVAC systems to efficiently remove heat from buildings.
- These structures work by passing outside air over falling water, with fans accelerating the cooling process for more effective temperature control.
- Proper maintenance of cooling towers is essential for system efficiency, building comfort, and preventing issues like bacterial growth.
Need professional help with your commercial HVAC? Contact Total System Services or call (855) 999-0379, the Pacific Northwest’s leading commercial and government HVAC company.

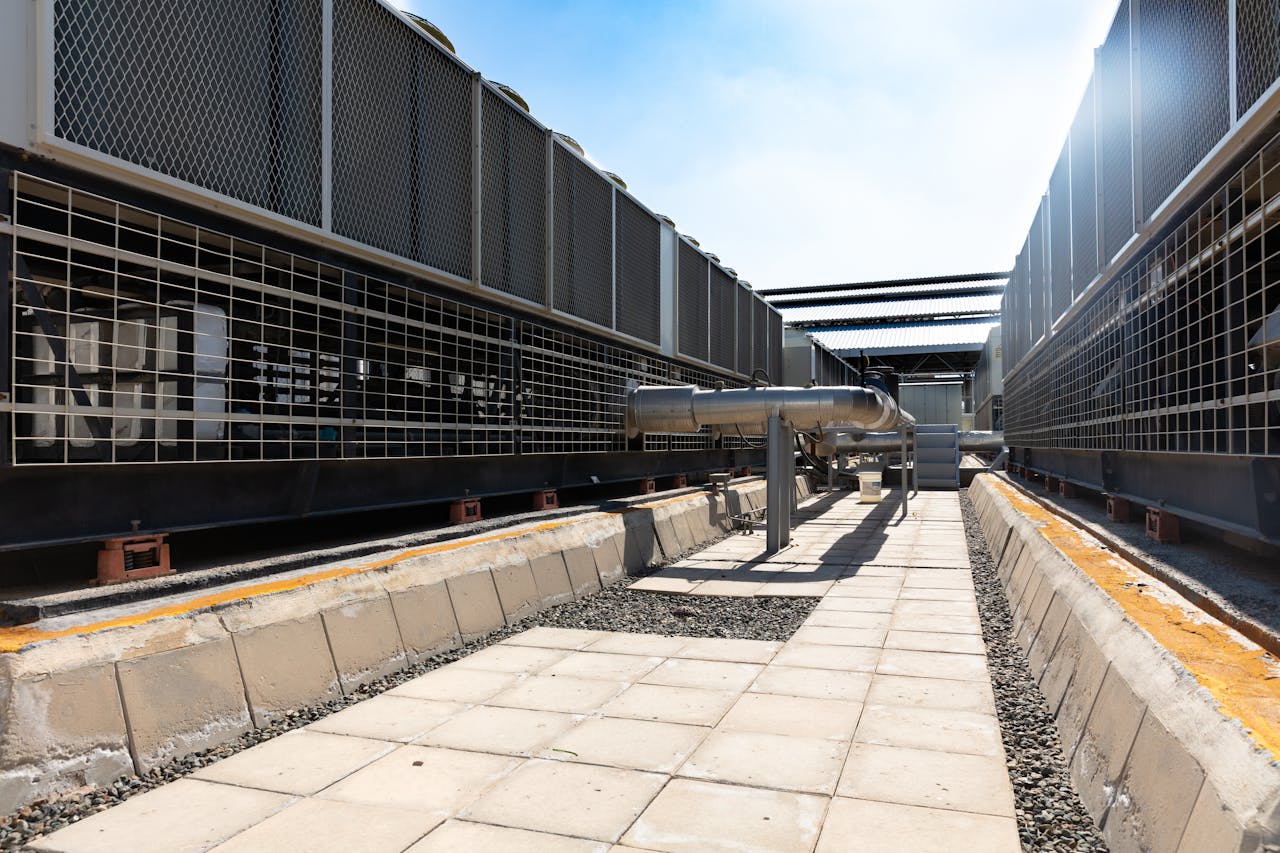

Understanding Cooling Towers in HVAC
Cooling towers are essential components in commercial HVAC systems that remove heat from buildings through water-based heat exchange processes. These specialized structures enable efficient cooling by rejecting unwanted heat from condenser water to the atmosphere.
Principle of Heat Exchange and Evaporative Cooling
Cooling towers work on the principle of evaporative cooling. When warm water from the building’s cooling system enters the tower, it comes in contact with air. As this happens, a small portion of the water evaporates.
This evaporation process requires heat energy, which is absorbed from the remaining water. The result is cooled water that can be recirculated back through the HVAC system’s condenser. This natural cooling method is highly efficient.
The cooling tower’s performance is influenced by ambient wet bulb temperature, which represents the lowest temperature water can reach through evaporation alone. Two important measurements in cooling tower operation are “range” (the temperature difference between inlet and outlet water) and “approach” (the difference between outlet water temperature and ambient wet bulb temperature).
Key Components of a Cooling Tower
A typical cooling tower consists of several crucial components that work together to facilitate heat transfer. The water distribution system evenly disperses warm water across the tower using nozzles or distribution basins.
Fill media maximizes water surface area exposed to air, enhancing evaporation and heat transfer efficiency. Different designs use various fill materials depending on specific requirements.
The cold water basin collects cooled water at the tower’s bottom for recirculation. Drift eliminators prevent water droplets from escaping with the exhaust air, conserving water and reducing contamination risks.
Cooling tower fans force or induce air movement through the tower. These may be axial (propeller-type) or centrifugal fans, depending on the tower design and application needs.
How Cooling Towers Operate within HVAC Systems
In commercial HVAC systems, cooling towers work in conjunction with water-cooled chillers. The chiller’s refrigeration cycle transfers heat from the building to condenser water. This heated water is then pumped to the cooling tower.
Inside the tower, the water is cooled through evaporation before returning to the chiller’s condenser to absorb more heat. This continuous cycle effectively removes heat from the building.
The cooling tower’s capacity for heat rejection depends on its size, design, and ambient conditions. Proper sizing ensures optimal performance while balancing energy efficiency, water usage, and cost considerations.
Multiple towers may operate in parallel for larger applications, with sophisticated controls managing water flow based on cooling loads and outdoor conditions. This integration allows HVAC systems to maintain comfort while optimizing energy consumption.
Types, Efficiency, and Applications of Cooling Towers
Cooling towers serve as vital heat rejection devices in HVAC systems, utilizing various designs to meet specific cooling needs. They range from simple natural draft structures to complex mechanical systems, each offering different efficiency levels and suitable for various applications.
Major Types and Designs of Cooling Towers
Cooling towers are primarily classified into two main categories based on airflow mechanism: natural draft and mechanical draft towers.
Natural draft cooling towers use temperature differences between ambient air and hot water to create airflow naturally without fans. These tall, hyperbolic structures are common in power plants where large cooling capacity is needed.
Mechanical draft towers use fans to move air through the system and come in several varieties:
- Induced draft towers have fans at the discharge that pull air through the tower
- Forced draft towers have fans at the air inlet that push air through the system
Based on water-air flow patterns, towers are further classified as:
- Crossflow cooling towers where air moves horizontally across falling water
- Counterflow cooling towers where air moves upward against downward-flowing water
Hybrid cooling towers combine different technologies to optimize performance in varying conditions while reducing visible plume and water consumption.
Efficiency Factors and Performance Metrics
Cooling tower efficiency depends on several key factors that affect heat dissipation capacity:
- Approach temperature: The difference between the cold water temperature and the ambient wet-bulb temperature
- Range: The temperature difference between entering hot water and exiting cooled water
- Heat load: The total amount of heat energy the tower must remove
The fill pack design significantly impacts efficiency by maximizing water-air contact surface area. Modern fills use engineered materials that enhance heat transfer while minimizing pressure drop.
Performance is also affected by:
- Ambient conditions (temperature, humidity)
- Water distribution quality
- Fan performance
- Water quality and treatment
Water consumption is another critical efficiency metric, with evaporation typically accounting for 1-3% of the circulating water flow rate. Systems with drift eliminators can reduce water droplet loss to less than 0.005% of water flow.
Applications in HVAC and Industrial Processes
Cooling towers serve diverse applications across commercial, industrial, and institutional settings:
HVAC Systems:
- Large commercial buildings (offices, hospitals, schools)
- Shopping malls and theaters
- Data centers requiring constant cooling
- District cooling systems serving multiple buildings
Industrial Applications:
- Power generation facilities
- Refrigeration systems
- Chemical processing plants
- Oil refineries and natural gas processing
- Plastic injection molding and die casting operations
- Water-cooled air compressors
In manufacturing, cooling towers help maintain optimal temperatures for production equipment, preventing overheating and ensuring product quality. They’re essential in processes generating significant heat like steel production and glass manufacturing.
Food and beverage industries rely on cooling towers for processing, storage, and temperature-controlled environments. Many pharmaceutical operations depend on precise cooling for manufacturing and storage facilities.
Maintenance, Water Treatment, and Safety Considerations
Regular maintenance ensures optimal cooling tower performance and extends equipment life. Key maintenance tasks include:
- Inspecting and cleaning fill material
- Checking water distribution systems
- Testing and servicing fans, motors, and drives
- Monitoring and repairing structural components
Water treatment is crucial to prevent scale buildup, corrosion, and biological growth. A proper water treatment process typically includes:
- Chemical treatments (biocides, scale inhibitors)
- Filtration systems
- Regular testing and monitoring
- Blowdown management to control dissolved solids
Safety concerns center primarily around biological hazards, especially Legionella bacteria. Proper maintenance and water treatment can prevent Legionnaires’ disease outbreaks. Most regulations require regular testing and documentation of water quality.
Energy efficiency improvements can be achieved through:
- Variable frequency drives for fans
- Upgraded fill materials
- Automated controls
- Regular cleaning and maintenance
Proper cooling tower operation not only ensures efficient heat rejection but also minimizes water usage, reduces energy consumption, and extends equipment life.
