Have you ever wondered how hot fluids cool down and cold fluids warm up without mixing together? Heat exchangers make this possible. These systems transfer heat between two or more fluids while keeping them separate.
Heat exchangers work by allowing heat to move from a hot fluid to a cooler one through a solid barrier, such as metal plates or tubes, without the fluids ever coming into contact with each other.
Heat exchangers are vital parts of many systems we use every day.
Your car’s radiator, home heating system, and even refrigerator all use heat exchangers. They help control temperatures in food processing, pharmaceuticals, and HVAC systems too. The simple idea behind them makes them efficient tools for managing heat in many applications.
Key Takeaways
- Heat exchangers transfer thermal energy between fluids without allowing them to mix.
- These devices use conductive materials like metal to efficiently move heat from hot areas to cooler ones.
- Heat exchangers come in various designs to suit different applications in industries, vehicles, and buildings.
Need help with your commercial or government HVAC systems? Contact Total System Services or call (855) 999-0379 in the Pacific Northwest.
Fundamental Principles of Heat Exchangers
Heat exchangers operate on several key physical principles that enable them to efficiently transfer thermal energy between different fluids without mixing them. These devices play a crucial role in temperature regulation across various industries.
What Is a Heat Exchanger
A heat exchanger is a device designed to transfer thermal energy between two or more fluids at different temperatures. These systems allow heat to move from a warmer medium to a cooler one without the fluids coming into direct contact with each other.
Heat exchangers come in various designs including shell and tube, plate, and finned configurations. Each type serves specific applications in industries like food processing, pharmaceuticals, HVAC systems, and power generation.
The primary purpose of these devices is temperature regulation – either heating or cooling a substance to achieve desired thermal conditions. Without heat exchangers, many industrial processes and comfort systems we rely on daily would be impossible.
Basic Heat Exchange Mechanisms
Heat exchange occurs through three main mechanisms: conduction, convection, and sometimes radiation. In most heat exchangers, conduction and convection are the dominant processes.
Conduction involves heat transfer through solid materials, like the metal walls of tubes or plates in the exchanger. Heat moves from higher temperature regions to lower ones through molecular vibration.
Convection transfers heat through fluid movement. As a fluid flows through the exchanger, it carries thermal energy along its path. This process occurs on both sides of the exchange surface.
The efficiency of these mechanisms depends on:
- Surface area of contact
- Material properties
- Flow rate of fluids
- Temperature differential
Role of Temperature Difference and Thermal Conductivity
Temperature difference is the primary driving force behind heat transfer in any exchanger. The greater the temperature gap between the two fluids, the faster heat will move between them.
Thermal conductivity of materials used in heat exchangers significantly impacts performance. Metals like copper and aluminum offer excellent conductivity, allowing for rapid heat transfer through exchanger walls.
The rate of heat exchange can be expressed by the equation:
- Q = U × A × ΔT
- Q = heat transfer rate
- U = overall heat transfer coefficient
- A = surface area
- ΔT = temperature difference
Design engineers must carefully balance these factors to create effective heat exchangers. The optimal combination of materials, surface area, and flow patterns ensures maximum efficiency for specific applications.
Types, Designs, and Applications of Heat Exchangers
Heat exchangers come in various designs to suit different industrial needs. Each type offers specific advantages in terms of heat transfer efficiency, space requirements, pressure handling, and maintenance accessibility.
Common Types of Heat Exchangers
The industry uses several heat exchanger designs, each with unique benefits. Shell and tube heat exchangers consist of tubes inside a cylindrical shell. They handle high pressures well and are easy to clean. Fluid flows through the tubes while another fluid circulates around them in the shell.
Plate heat exchangers use metal plates to transfer heat between fluids. They’re compact and highly efficient but may not handle extreme pressures.

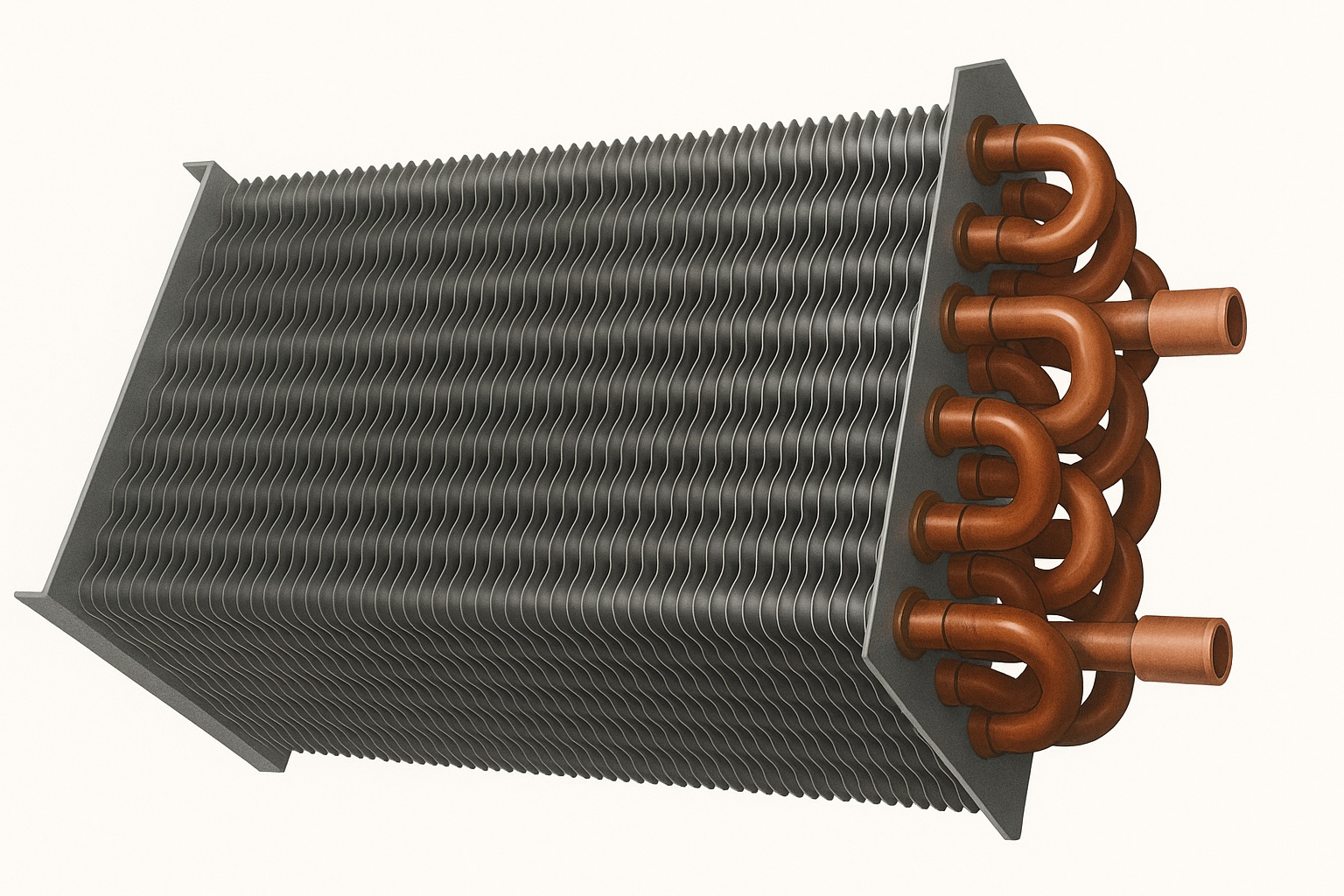

Air-cooled heat exchangers use fins to increase surface area and improve heat transfer with air as the cooling medium.
Double-pipe exchangers are simple designs with one pipe inside another. They’re good for small-scale operations.
Spiral heat exchangers use curved channels to create a compact design that resists fouling. They work well with high-viscosity fluids.
Shell and Tube Versus Brazed Plate Designs
Shell and tube exchangers are workhorses in heavy industry. They handle high temperatures (up to 800°C) and pressures (up to 300 bar). Their robust design allows for easy maintenance through removable tube bundles. However, they require more space than other designs.
Brazed plate heat exchangers consist of stainless steel plates brazed together with copper. They offer:
- 30-50% higher efficiency than shell and tube designs
- Up to 80% smaller footprint
- Lower cost in many applications
- Better performance with smaller temperature approaches
Brazed plate units have limitations: maximum temperatures around 200°C and pressures up to 30 bar. They cannot be opened for mechanical cleaning, making them unsuitable for fluids that cause fouling.
Flow Configuration: Counterflow, Parallel Flow, and Multi-Pass
The flow arrangement significantly impacts heat exchanger efficiency. In counterflow configuration, fluids move in opposite directions. This creates the highest temperature difference throughout the exchanger, resulting in 3-4 times more efficient heat transfer than parallel flow.
Parallel flow configurations have both fluids moving in the same direction. While less efficient, they’re useful when thermal shock is a concern.
Multi-pass designs direct fluid back and forth through the exchanger multiple times. Benefits include:
- Increased heat transfer in limited space
- Better temperature control
- Higher turbulence for improved heat transfer
- Flexible design options for different applications
Cross-flow arrangements have fluids moving perpendicular to each other. They’re common in air-to-liquid heat exchangers like car radiators.
Key Design Factors: Surface Area, Fins, and Materials
Heat transfer area is crucial for exchanger effectiveness. Larger surface area increases heat transfer capacity but adds cost and size. Engineers optimize this balance for each application.
Fins extend surface area without expanding the core exchanger size. They can increase heat transfer by 5-10 times in gas applications. Common fin types include:
- Plate fins (flat extensions)
- Wavy fins (increased turbulence)
- Louvered fins (improved air flow)
Material selection affects performance and longevity. Copper offers excellent thermal conductivity (385 W/m·K) but may corrode in certain environments. Stainless steel provides corrosion resistance with lower conductivity (16-24 W/m·K). Aluminum balances good conductivity (205 W/m·K) with reasonable cost.
Other design factors include fluid velocity, pressure drop, and fouling resistance.
Performance Metrics: Heat Transfer Coefficient, LMTD, and Overall Effectiveness
Engineers evaluate heat exchanger performance using several key metrics. The overall heat transfer coefficient (U-value) measures how effectively heat transfers across exchanger surfaces, typically ranging from 10-10,000 W/m²·K depending on design and fluids.
Log Mean Temperature Difference (LMTD) represents the effective temperature difference driving heat transfer. It accounts for temperature changes throughout the exchanger and directly affects sizing calculations.
Heat transfer effectiveness compares actual heat transfer to the maximum possible. A well-designed exchanger achieves 70-90% effectiveness.
Other important metrics include:
- Pressure drop (energy loss as fluid moves through)
- NTU (Number of Transfer Units)
- Reynolds number (indicates flow turbulence)
- Fouling factor (accounts for thermal resistance from deposits)
These metrics help engineers select the right exchanger for specific applications and predict performance.
Applications in HVAC and Natural Draft Systems
Heat exchangers are vital in heating, ventilation, and air conditioning (HVAC) systems. They transfer heat between refrigerant and air in both heating and cooling processes. In commercial buildings, they recover heat from exhaust air to pre-heat incoming fresh air, reducing energy costs by 50-80%.
Natural draft cooling systems use heat exchangers without mechanical assistance. They rely on buoyancy forces as hot air rises naturally. Applications include:
- Cooling towers for power plants
- Passive solar heating systems
- Geothermal heat exchangers
- Some industrial cooling processes
HVAC systems typically use plate, shell and tube, or finned tube heat exchangers. Residential systems often employ smaller brazed plate exchangers for hydronic heating or shell and tube designs for pool heating.
Hot water systems use heat exchangers to separate potable water from heating sources, ensuring safety while maintaining efficient heat transfer.
